Experimental indications of non-classical brain functions

Quantum mechanisms are at work in sensory systems feeding the brain with information [1–3]. Foremost in magneto-reception [4], there is no doubt that only quantum mechanical effects can explain its sensitivity [3]. It has been suggested that entangled radical electron pairs are involved.

Beyond those sensory inputs, more complex brain functionalities depend on the presence of specific nuclear spins. For example, Lithium-6 isotopes with nuclear spin 1 increase activity of complex behaviour in contrast to Lithium-7 isotopes with 3/2 spin where it decreases [5]. Similar, Xenon isotopes with 1/2 spin are effective anaesthetizers in contrast to Xenon isotopes with spin 0 which have only little effects [6]. However, nuclear spins can, like electron spins, influence chemical reactions [7], which then lead to macroscopic results as commonly observed in physiology. Whether those, or other macroscopic systems in the brain can be non-classical, is still unknown. Experimental methods, which could distinguish classical from quantum correlations in the living brain, haven't yet been established.

In this respect, recent proposals in quantum gravity [8, 9] may help to overcome experimental restrictions in living systems. Those proposals use auxiliary quantum systems, for which they showed that if a system can mediate entanglement between auxiliary quantum systems, then the mediator itself is non-classical. If a cerebral mediator of this kind exists, then it is likely that the entanglement plays an important role in the brain. Although, quantum computing can be achieved without entanglement [10], it is commonly believed that entanglement is essential to play out its full advantages [10]. Therefore, it is likely that entanglement, if mediated by any brain function at all, may only occur during brain activity. Hence, the experimental demands on an auxiliary quantum system are that they can be measured non-invasively in the conscious-aware brain, and further that entanglement can be witnessed.

NMR offers a non-invasive approach. The nuclear spins are quantum systems which could, in theory, be entangled by a cerebral mediator. NMR sequences based on multiple quantum coherence (MQC) can also witness entanglement [11]. The MQC entanglement witness relies on bounds which, for applications in biology, may be based on the maxim um classical signal achievable. The maxim um classical MQC signal in fluids have been estimated based on the intermolecular MQC (iMQC) approach [12]. The iMQC signal, despite the naming, is an entirely classical signal because it can also be the classically derived [13], which is known as multiple spin echo (MSE) [14, 15]. Therefore, it can be used as the classical bound.

Further, an exclusion of classicality can also be argued on the following basis. A single quantum coherence (SQC) which is weighted by ${{\rm{T}}}_{1,2}^{(* )}$ relaxation or diffusion contrast may respond similarly to physiological changes as the iMQC contrast, which is caused by dipole-dipole interaction (like ${{\rm{T}}}_{1,2}^{(* )}$) relaxation or rotational symmetry breaking (similar to diffusion) [16–19]. Hence, a signal change in a MQC sequence with no corresponding diffusion or ${{\rm{T}}}_{2}^{* }$-weighted SQC signal is most likely non-classical. In contrast, classical SQC and classical MQC signals should have a common subset.

With this knowledge at hand, we can now search for situations in which witnessing entanglement may be possible. As mentioned before, brain activity, or more concretely brain computation, may play a crucial role in the creation of cerebral entanglement. Hence, we can make additional observations specific to the brain. We propose the following conditions:

• (1)
  Sufficient condition for witness— It has been shown that direct mapping of brain activity, which is directly related to electrophysiology, isn't possible with SQC techniques [20, 21]. Therefore, MQC signals corresponding to electrophysiological events, which are not accompanied by secondary events causing a SQC signal, have no common subsets with a SQC related component. Hence, those MQC signals are most likely non-classical and therefore sufficient to witness entanglement.
• (2)
  Necessary condition for witness—The brain can operate without any external magnetic fields, which means that, without a brain function at work, all states are initially mixed. Hence, the assumed brain function producing entanglement, must use a kind of quantum distillation process [22] on mixed states [23]. Therefore, we conclude that the NMR signal must initially be saturated. The following two arguments underpin the importance of saturation for the detection further. The unusual omission of (pseudo-)pure states on which the MR signal is normally constituted, circumnavigates the major problem that entanglement of pure spins, which are in close proximity, is highly unlikely [24]. Further, the saturation of pure local states may serve the existence of non-localities because local and non-local properties can be complimentary [25, 26].

Now, we are in the position to address the question whether the brain can mediate entanglement, experimentally. Based on the above considerations, we explored if the conscious-aware brain may use entanglement during computing. As indicators of brain computation, we focussed on electrophysiological brain waves, which can be observed in the conscious-aware brain at rest. We acquired MRI time series which were highly saturated and which were able to detect zero quantum coherence (ZQC ). Based on the maximal temporal resolution of our method (< 5 Hz), we focussed on Heartbeat Evoked Potentials (HEPs) [27], which like other electrophysiological signals are far below the detection threshold of conventional MRI sequences [20, 21].

We used the echo planar imaging (EPI) time series (as described in section 3) in human volunteers at rest. The beginning of the sequential RF-pulses train of the EPI time series were used to saturate the magnetization of the imaging slice. The desired reductions of the local NMR component were normally reached shortly before the equilibrium magnetization. Then, we found regular, repeating signal bursts of predominant signal alternations in single volumes of the brain slices as shown in figure 1, where the signal peaks of the bursts increased by up to 15%. In most cases, the alteration was sequential from one image acquisition to the next.

Zoom In Zoom Out Reset image size

In the following, we will focus on the NMR contrast mechanism of the signal first, and then how it related to physiology and mind.

2.1. NMR contrast

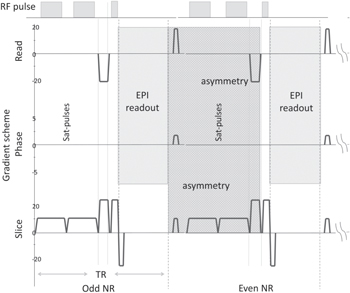

The burst signal alternated during burst, which confirmed that at least two RF pulses were necessary to generate the signal. The two RF-pulses always enwrap an asymmetrical gradient interval G_a T_a (figure 2), which is the basic pulse design to measure ZQC.

Zoom In Zoom Out Reset image size

The consequential long-range ZQC contrast was verified further by altering sequence parameters.

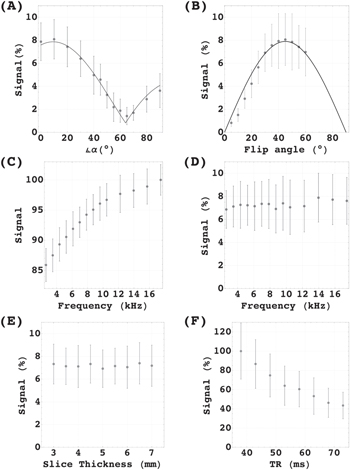

For rotating the asymmetric gradients G_a , we found the characteristic angulation dependency of the dipole-dipole interaction as shown (figure 3(A)). The plot represents the fitted function $m\cdot | (3\cdot {\cos }^{2}[\varphi ]-1)| +c$ (adjusted R² test of goodness-of-fit resulted in R² = 0.9958) where φ takes the additional gradients in read and phase direction into account, and m = 3.51 is the signal magnitude. At the magic angle, the burst signals reach the noise level at c = 0.81.

Zoom In Zoom Out Reset image size

For the flip angle variation, we found the predicted signal course for the ZQC flip angle dependency [28] which was fitted to the data (R² = 0.9964). Predicted maximum at 45° could be confirmed (figure 3(B)). In contrast, the Ernst-angle [29] which is a good indication for the optimum angle for SQC is around 13° (for T₁ = 1.5 s).

For the alteration of the off-resonance frequency, we found a typical magnetization transfer contrast (MTC) change for the baseline, which depended on the off-resonance frequency (figure 3(C)). In contrast, the signal intensity showed the remarkable immunity to MTC as expected for ZQC [30] with no significant changes in the same frequency range (figure 3(D)).

The effects of the competing effects, the build up of the ZQC on the one hand and de-phasing over time on the other hand, were studied varying the TR. We found that from 38 ms onwards the signals showed no growth of ZQC. The free induction dominated.

Finally, we varied the slice thickness to study Time-of-flight effects. We found no significant influence on the relative signal.

2.2. Physiology and mind

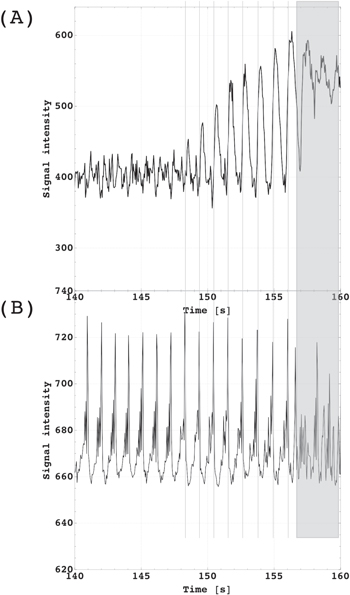

The periods of signal bursts repeated with the same rate as the heart-beat. We used three temporal reference systems; (a) a finger pulse oximetry, (b) an electrocardiogram (ECG), and (c) the time-of-flight signal of a voxel placed in the superior sagittal sinus. The signal bursts appeared with the pulse from the finger pulse oximetry (figure 1). In relation to the ECG, we found using the Cross-Recurrence Quantification Analysis that the maximum burst signal was delayed by 0.3s on average. With the start of the venous outflow, the bursts always ended as shown in figure 4 and figure A1.

Zoom In Zoom Out Reset image size

Regarding the duration of the bursts under normal conditions, we mostly observed two sequential peaks which equal led 4 TRs adding up to a period of 180 ms. We also saw longer periods building up to 10 TRs (see figure 4(B)) extending the period to 450 ms.

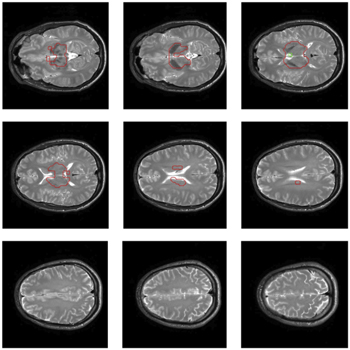

We located the bursts in brain tissue of all slices except around the periventricular area (probably due to movement induced by ventricular pulsation in those regions [31]) as illustrated in figure A2.

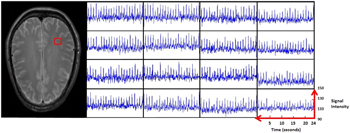

The global aspect conformed with another interesting feature; the signal could be restored while being averaged over the entire tissue component of the imaging slice (figure 1 and figure 4B, single voxel time course are shown in figure A3).

We also found that the signal did not respond to the CO₂ challenge (figure 4(B)) in contrast to the SQC signal from the voxel including the superior sagittal sinus (figure 4(A)) which indicated the blood flow response.

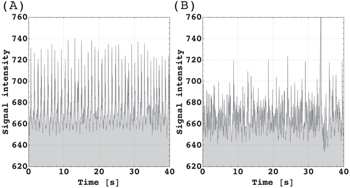

During our studies, we also realized that the signal depended on awareness and awakening. In seven participants, from whom two had reported to have fallen asleep, we found that the signal pattern declined as shown in figure 5. For the final data acquisition, all participants had been asked to stay awake during the imaging protocol. At this point, we no longer detected a sleep pattern. In a case study, we observed the pattern change over a period of 20 minutes which showed a gradual transition from awake to asleep as shown in the appendix at figure A4.

Zoom In Zoom Out Reset image size

We used Recurrence Quantification Analysis and Multifractal Detrended Fluctuation Analysis to illustrate the difference between wakefulness and the slow decline during the falling asleep period. The analysis shows that periodicity, large and small fluctuations, repeating patterns and their predictability, and the stability of the system were changing over the observation period (figure A5).

We studied 40 subjects (between 18 and 46 years old) using a 3 Tesla whole-body MRI scanner (Philips, The Netherlands) which was operated with a 32-channel array receiver coil. Imaging protocols were approved by Trinity College Dublin School of Medicine Research Ethics Committee. All participants of final data acquisition were asked to stay awake and stay still during the imaging protocol, or to report any failure to do so.

Fast gradient-echo EPI (GE-EPI) time series were carried out, which had been optimized over a wide range of participants. The finalized parameters were as follows: FA = 45°, TR = 45 ms, TE = 5, voxel size = 3.5 × 3.5 × 3.5 mm, matrix size = 64 × 64, SENSE factor = 3, bandwidth readout direction = 2148 Hz, saturation pulse thickness/distance = 5/20 mm. Two saturation pulses placed parallel to the imaging slice (figure 2) were added, which allowed us to vary long-range correlation of the ZSE and MTC. Saturation gradients had a time integral (length × strength) of GT_s = 5.1 ms × 6.25 mT m⁻¹, the crusher gradients in read and slice direction of GT_c = 1.3 ms × 25 mT m⁻¹, the slice rephase gradient of GT_r = 0.65 ms × 25 mT m⁻¹, and the slice termination gradient of GT_t = 0.65 ms × 15 mT m⁻¹. Gradients timing and arrangements are shown in figure 2. Gradients relevant for ZSE are shown in the asymmetry field and are marked with indices t, c, r, and s for identification. We rotated the asymmetric gradients in respect to the magnet field starting from coronal 0° to axial 90° in twelve steps; slice angulation α related to the angulation from the spin-spin interaction as $\varphi =\alpha -{\tan }^{-1}\left([{{\rm{GT}}}_{c}-{{\rm{GT}}}_{r}]/[2\cdot {{\rm{GT}}}_{s}+{{\rm{GT}}}_{c}+{{\rm{GT}}}_{t}]\right)=\alpha -{\rm{9.6}}^\circ$. Further, we varied the correlation distance via altering the amplitude and the duration of the saturation gradients.

We also altered the following sequence parameters in pseudo-randomised orders:

• (a)
  variation of the flip angle from 5° to 60° in steps of 5°(60° was the power limit by the specific absorption rate (SAR)).
• (b)
  the off-resonance frequency was varied as [2.62, 3.49, 4.36, 5.23, 6.11, 6.98, 7.84, 8.73, 9.60, 10.47, 12.22, 13.96, 15.71, 17.45] kHz.
• (c)
  slice thickness from 3 mm to 7 mm in steps of 0.5 mm.
• (d)
  repetition time (TR) varied from 38 ms to 73 ms in steps of 5 ms.

Further, we explored the signal distribution over the entire brain. 9 slices (in 5 volunteers) were acquired at different positions, with slices from the bottom to the top covering all anatomical regions.

In a breath-holding challenge, four participants were asked to stop breathing for 20 s without taking a deep breath. Body movements were reduced through multiple cushions immobilizing the head.

For the time reference analysis, we used Cross-Recurrence Quantification Analysis [32] to calculate the delay between the R-wave in electrocardiogram (ECG) and the MRI signal. For the calculation, we used the CRP Toolbox [33, 34] for Matlab [35].

For the NMR contrast analysis, we used the averaged maximum peak of the burst and the signals between bursts as baselines. Calculations were performed using the routine by Gomes et al [36] which was implemented in Matlab [35]. Preprocessing included the following; Rescaling, which was applied to all data sets before any analysis using the MR vendor's instructions. Visual inspection of average time series to search for irregularities, which were manually removed from the analysis, leaving the rest of the time series unaltered. Manual segmentation was used to create a mask to remove cerebral spinal fluid (CSF) contributions. The first 100 of 1000 scans were removed to avoid signal saturation effects. The manual segmentation of the masks was eroded to avoid partial volume effects at the edges.

For the analysis of sleeping pattern, we used a Recurrence Quantification Analysis and a Multifractal Detrended Fluctuation Analysis (for detailed description see Lopez-Perez et al [37]). All data graphics were created with Mathematica [38]. Data and source code for analysis are available online [39].

The aim of this study was to find evidence that brain functions can create entanglement in auxiliary quantum systems. Thereby, we employed a hybrid MRI sequence which could contain SQC and ZQC, simultaneously. We found that the heart pulsation evoked NMR signal burst with every heartbeat. We were able to show in section 2.1 that the signal contrast originated from spin-spin interactions. Therefore, we might have witnessed quantum entanglement. However, NMR signals can be altered by many physiological changes. Ultimately, we had to prove that the signal bursts were not a 'classical' ZQC.

As mentioned above, classical ZQC have corresponding contrasts in SQC, namely T2* relaxation and diffusion. Both contrasts alter during the heart cycle. However, T2* changes have shown a different temporal (shifted by more than half of the cycle time in respect to the ZQC signal) and spatial response (higher signal at blood vessel) [40]. The tissue response at around 2% is much lower than during functional activation. In contrast, functional activations showed no significant changes in the ZQC burst signal and only minimal signal increases at the baseline [41]. Therefore, we can conclude that classical dipole-dipole interactions are ineligible as a signal source. Further, ZQC depends on order [42] and rotational symmetries [16, 17] which can be probed with diffusion MRI. The order may correlate with the apparent diffusion coefficient (ADC), while the fractional anisotropy (FA) indicates the rotational symmetry breaking. In praxis, MQC signals are higher at decreased ADC and increased FA. Nakamura et al [43] have shown that the temporal changes of the ADC-values are in phase with the intracranial volume change, while FA-values show a shift by 180°. Our ZQC signals coincided with the transition phase from the highest to the lowest ADC (and vice versa for the FA). From those results, we can deduce that the theoretical optimum (ADC minimal, FA maximal) for a classical ZQC is outside the time window of the ZQC bursts. We conclude that our observation has no corresponding SQC contrast.

Furthermore, the signals surpassed the classical bound by far. For 'classical fluids', the S/N of ZQC compared to the conventional MRI signal (SQC) only reaches up to 0.05 at 4 Tesla, experimentally [44, 45]. Our sequence was suboptimal because we replaced a 90° by a 45° RF-pulse (reduction by factor 2), used a 3 Tesla field, and the evolution time was shorter. Therefore, we can infer that in combination with the EPI readout, that classical ZQC signals weren't detectable with our sequence. Even more, in the above argument, we discussed baseline signals. Our observations showed fluctuations which, if translated to a classical ZQC, would then be several magnitudes higher than the actual baseline ZQC signal.

Although, we found that the evoked bursts disappeared at the magic angle which means they have no SQC component, cardiac pulsation can cause flow and motion effects which we further investigated. We varied slice thickness and TR as possible sequence parameters, which are sensitive to time-of-flight effects. For the slice thickness, the relative signal did not vary significantly (Figure 3(E)), for the repetition time, we found the free induction decay dominating the decline (figure 3(F)). Furthermore, when we varied the blood flow with the help of a CO₂-challenge (figure 4), we found no significant response of the burst signal amplitude. From the fact that signal bursts have no significant SQC component (figure 3(A) at the magic angle), we can also exclude all SQC contrast mechanisms including changes in T₁ and T₂ relaxation, line narrowing, or magnetic field shifts.

Above, we have established that conventional MR sequences, be it SQC or MQC, are unable to detect the observed signal bursts. Further, we found that the signal amplitude is above the bound which could be classically reached.

By now, it is clear that the evoked signals can only be observed if the necessary condition, that the magnetization is highly saturated, is met. We also considered what we called the sufficient condition above. We found that the timing of the signal bursts coincided to the first cluster of the HEP [46]. Like the timing, the signal intensity also showed a similar dependence on conscious awareness in this time window [27, 47]. In another study, López Pérez et al [37] have shown that the complexity of burst signals correlate with psychological test results in short-term memory. This relation is also known in HEPs. To our knowledge, both, the direct correlation to conscious awareness and short-term memory, are unreported in classical MRI experiments. It underpins that our findings are from the same origin as HEPs and that there is no classical correlate in MRI.

The aim of this study was to show that the brain is non-classical. We assumed that unknown brain functions exist which can mediate entanglement between auxiliary quantum systems. The experimental detection of such an entanglement created by the brain would then be sufficient to prove cerebral non-classicality. We found experimental evidence that such entanglement creation occurs as part of physiological and cognitive processes. We argued that the ZQC signals were non-local because (a) ZQC signals were above the classical bound, and (b) the signals had no SQC and MQC ² correlates. Further, we could confirm that the signals were only detectable in combination with reduced classical signals (necessary condition), and that they resembled HEPs which are below verifiability in conventional MRI (sufficient condition). Our findings may disapprove the statement that quantum entanglement or coherence can't survive in the hot and wet environment of the brain [48]. Beyond the fundamental question we tried to answer here, we found an undiscovered NMR contrast, which can detect brain activity beyond conventional functional MRI. It may have interesting applications in psychology and medicine.
